SPECIFICATIONS

Brand Name: digisix

Hign-concerned Chemical: None

Model Number: 946c

Origin: Mainland China

is_customized: No

Description

Report Item / Suspicious Activity

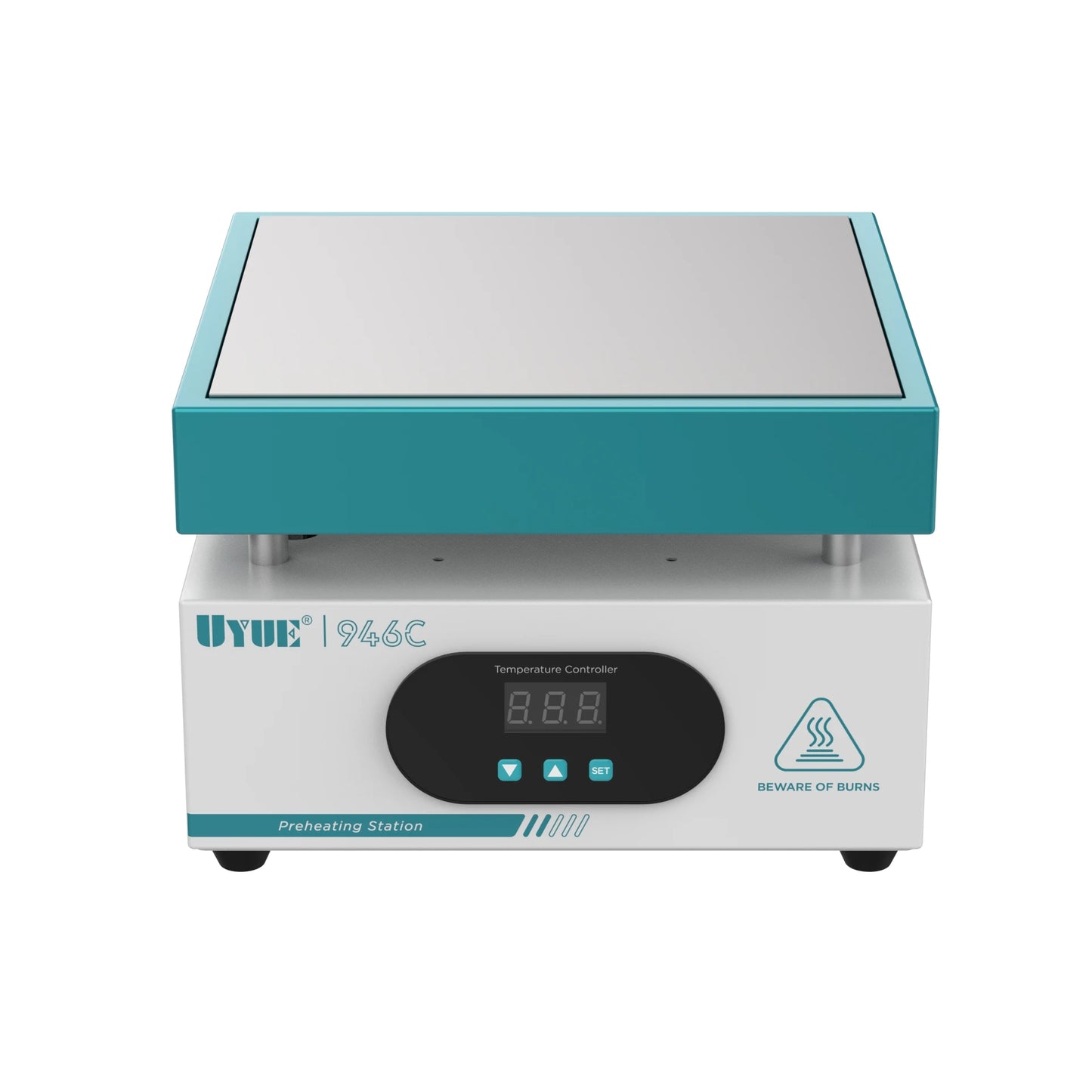

UYUE 946C Heating Station Electronic Hot Plate Maintenance Preheating Platform For BGA PCB SMD Phone LCD Touch Screen Repair

Model: 946C

Power supply voltage: 220 10% VAC

Power: 600W

Temperature range: 50-350°C

Temperature display: 3

Thermostatic stability: 1.5

Heating panel: Dimensions mm: 200 * 200 * 20

Dimensions: 196 * 145 * 200

Weight: 3.75 kg

Wide range of uses:

●Component heating operation ●SMD remanufacturing operation ●PCB board disassembly and welding operation ●Physical and chemical container heating ●Other equipment or appliance heating

Features:

● The CPU controls the temperature, which is accurate and constant. ●The heating ring is easy to install. ●The temperature setting provides two modes: normal setting and timely setting. ●The temperature display is intuitive and accurate. ● With automatic detection sensor function. High-quality aluminum alloy plate with high thermal efficiency and uniform temperature.

Specification:

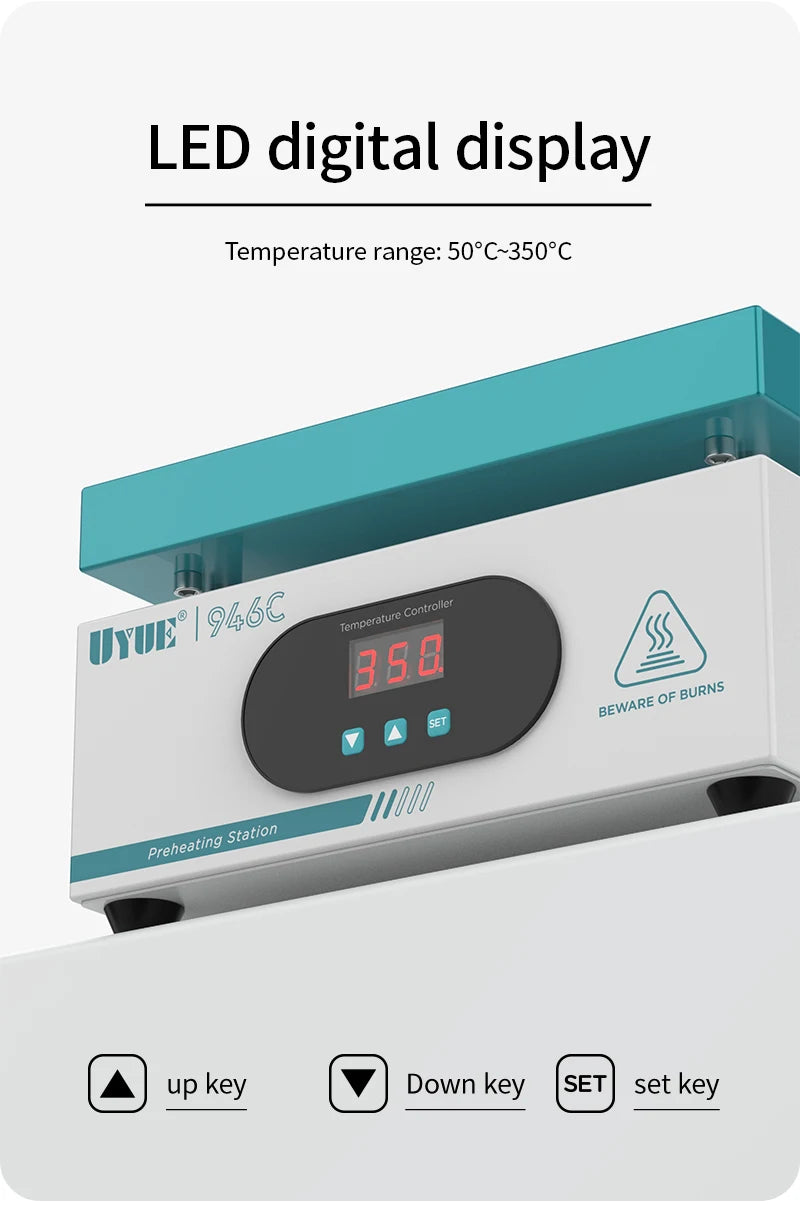

Temperature setting:

Press and hold the * button for more than 1 second to enter the temperature setting mode, and then press the * button to switch the number of temperature values to be set and set by the temperature rise or cool down button.

Instant temperature setting:

In the constant temperature state of the heating table, the direct heating button or the cooling button can adjust the current working temperature by ±50 °C.

Caveat

1. The working platform placed on the heating table should be flat and the material must be heat resistant.

2, in the course of work, the board surface and the surrounding is very hot, be careful to guard against burns, burns!

3, the object to be heated should pay attention to safety, too high temperature may damage the heating components.

4. It is forbidden to use heating plates near flammable and flammable objects.

5. To move or touch the machine, remember to cut off the power supply and wait until the heating plate is completely cooled to room temperature.

6. This machine is a high temperature electric heating product. If you do not use the machine, please cut off the power supply to avoid danger and accident.

7. In order to prolong the life of the heating element and the machine, it is forbidden to use the machine continuously for a long time at high temperature (above 300 °C). Under normal circumstances, the continuous working time of the machine should not exceed eight hours.

Note

1. Make sure the ground wire of the machine is well grounded.

2. Do not let the air flow blow directly on the board surface, otherwise it will affect the heating of the heater.

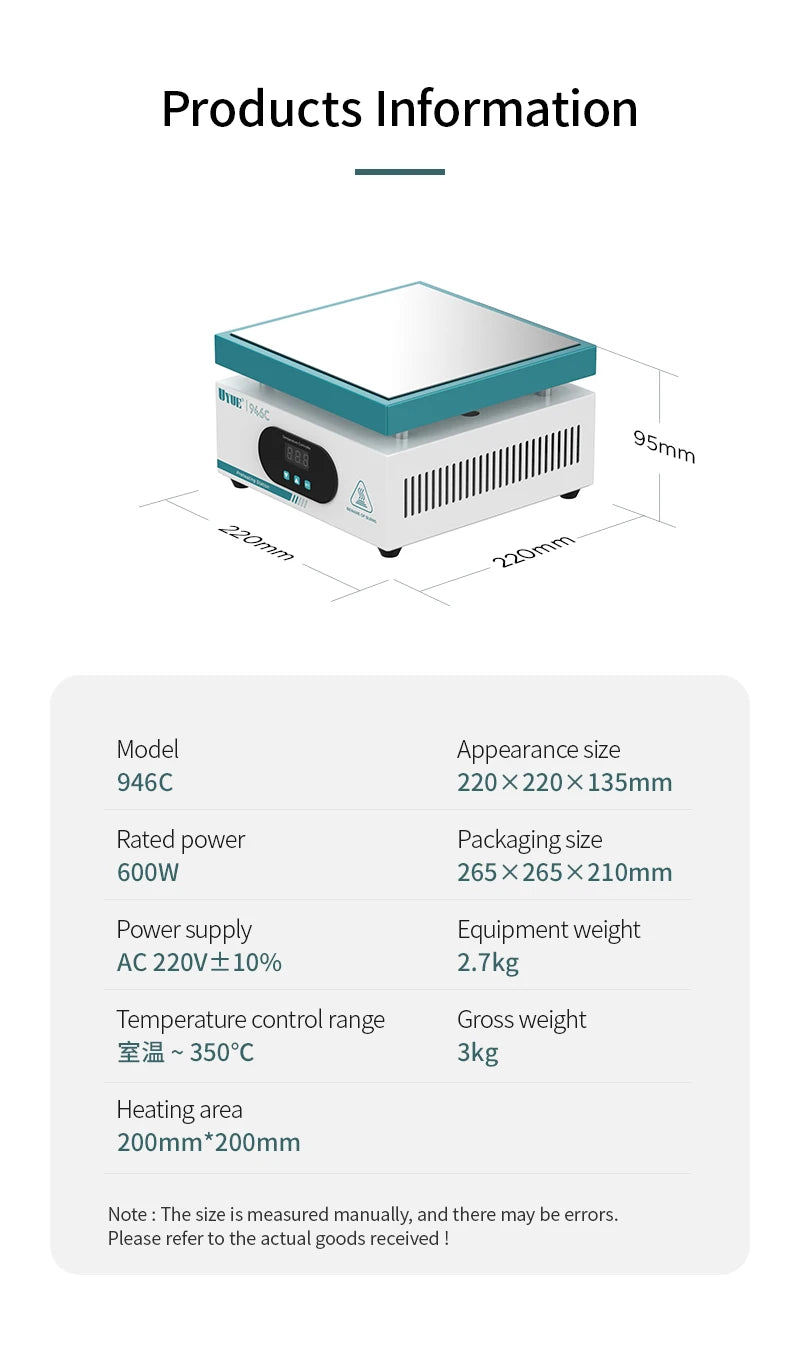

Product Specifications:

Temperature Range: 50-380 degrees Celsius

Heating Element Power: 600W

Voltage: 220V AC, 10% tolerance

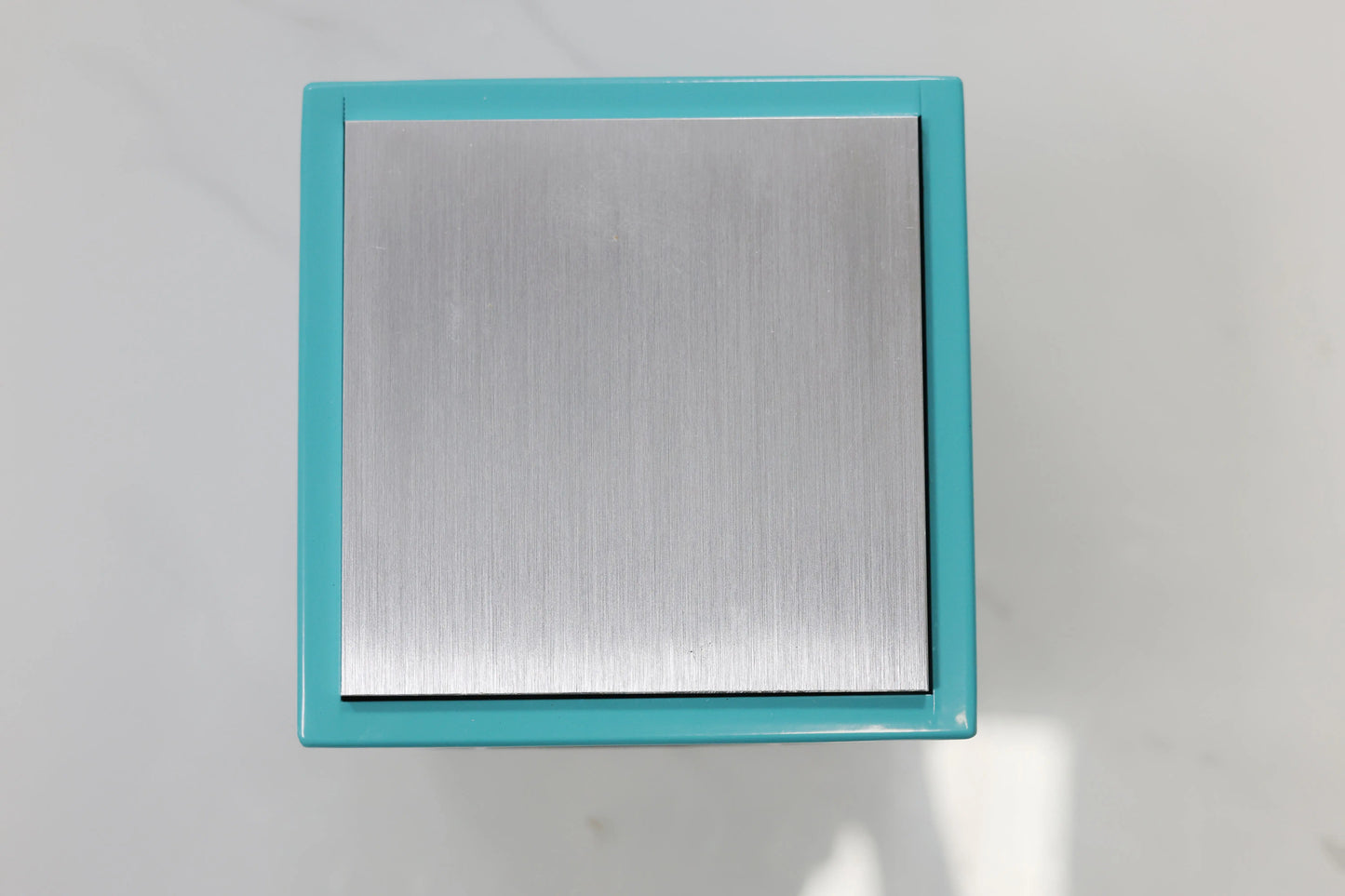

Construction: High-quality aluminum alloy plate

Design: Sleek, compact with an intuitive display

Weight: 3.75 kg

Safety Features: Automatic detection sensor, grounded electrical system

**Versatile and Precise Heating Solution**

The UYUE 946C Heating Station is a versatile electronic hot plate designed for precision heating in a variety of electronic repair scenarios. With a temperature range spanning from 50 to 380 degrees Celsius, this heating station is an indispensable tool for professionals and DIY enthusiasts alike. The 600W heating element ensures rapid and consistent heating, while the 220V AC power supply guarantees reliable performance. The high-quality aluminum alloy plate offers superior thermal efficiency and uniform temperature distribution, ensuring your electronic components are heated evenly and safely.

**Safety and Efficiency for Repair Work**

Safety is paramount when working with electronic components, and the UYUE 946C Heating Station is engineered with your safety in mind. The automatic detection sensor function provides an added layer of protection, while the grounded electrical system ensures the machine operates safely. The heating plate itself is designed to be easy to install, and the intuitive temperature display allows for precise adjustments with just a touch. The compact size and lightweight design make it an ideal addition to any repair workspace, while the robust construction ensures long-lasting durability.

**Optimized for Various Repair Tasks**

This heating station is not just limited to soldering tasks; it's a multifunctional tool for a wide range of electronic repairs. Whether you're dealing with BGA, PCB, SMD, phone, LCD, or touch screen repairs, the UYUE 946C Heating Station is the go-to platform for preheating and maintenance. The heating station's design is optimized for physical and chemical container heating, making it a versatile addition to your toolkit. With a weight of just 3.75 kg and a compact size, this heating station is portable enough for on-the-go repairs while maintaining a robust build quality.
